Premium Softclose Larder

Larder systems, which are indispensable accessories of modern kitchens, are designed with the aim of storing provisions in an orderly and easily accessible manner.

Wire - Tel

Wooden - Ahsap

Premium

Unique Slim

Unique Box

Product Codes

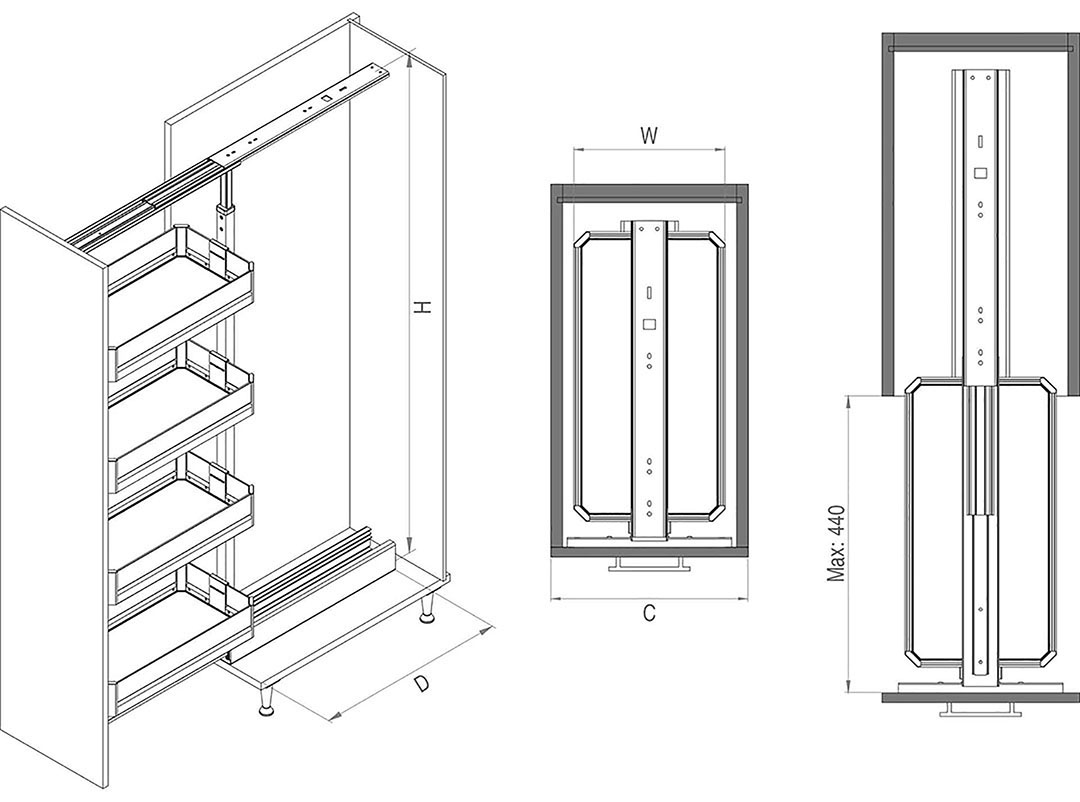

Technical Drawing

Assembly Instructions

Premium Softclose Larder

Color Options:

Product Code Basket W x D x H(mm) C (mm) Box Volume(m3) Weight(kg)
S-1801-P- 4 230 x 510 x 1250 - 1400 300 1 0,094 18,500
S-1802-P- 4 280 x 510 x 1250 - 1400 350 1 0,094 19,500
S-1803-P- 4 330 x 510 x 1250 - 1400 400 1 0,094 20,000
S-1804-P- 4 380 x 510 x 1250 - 1400 450 1 0,094 21,000
S-1805-P- 4 430 x 510 x 1250 - 1400 500 1 0,094 21,500
S-1807-P- 5 230 x 510 x 1400 - 1550 300 1 0,124 20,500
S-1808-P- 5 280 x 510 x 1400 - 1550 350 1 0,124 21,500
S-1809-P- 5 330 x 510 x 1400 - 1550 400 1 0,124 22,500
S-1810-P- 5 380 x 510 x 1400 - 1550 450 1 0,124 23,500
S-1811-P- 5 430 x 510 x 1400 - 1550 500 1 0,124 24,500
S-1813-P- 5 230 x 510 x 1550 - 1700 300 1 0,124 20,000
S-1814-P- 5 280 x 510 x 1550 - 1700 350 1 0,124 21,000
S-1815-P- 5 330 x 510 x 1550 - 1700 400 1 0,124 22,000
S-1816-P- 5 380 x 510 x 1550 - 1700 450 1 0,124 23,000
S-1817-P- 5 430 x 510 x 1550 - 1700 500 1 0,124 24,000
S-1819-P- 6 230 x 510 x 1700 - 1850 300 1 0,147 23,500
S-1820-P- 6 280 x 510 x 1700 - 1850 350 1 0,147 24,500
S-1821-P- 6 330 x 510 x 1700 - 1850 400 1 0,147 25,500
S-1822-P- 6 380 x 510 x 1700 - 1850 450 1 0,147 26,500
S-1823-P- 6 430 x 510 x 1700 - 1850 500 1 0,147 27,500
S-1825-P- 6 230 x 510 x 1850 - 2000 300 1 0,147 24,000
S-1826-P- 6 280 x 510 x 1850 - 2000 350 1 0,147 25,000
S-1827-P- 6 330 x 510 x 1850 - 2000 400 1 0,147 26,000
S-1828-P- 6 380 x 510 x 1850 - 2000 450 1 0,147 27,000
S-1829-P- 6 430 x 510 x 1850 - 2000 500 1 0,147 28,000

Product Code

Basket

W x D x H(mm)

C (mm)

Box

Volume(m3)

Weight(kg)

S-1801-P-

230 x 510 x 1250 - 1400

300

0,094

18,500

S-1802-P-

280 x 510 x 1250 - 1400

350

0,094

19,500

S-1803-P-

330 x 510 x 1250 - 1400

400

0,094

20,000

S-1804-P-

380 x 510 x 1250 - 1400

450

0,094

21,000

S-1805-P-

430 x 510 x 1250 - 1400

500

0,094

21,500

S-1807-P-

230 x 510 x 1400 - 1550

300

0,124

20,500

S-1808-P-

280 x 510 x 1400 - 1550

350

0,124

21,500

S-1809-P-

330 x 510 x 1400 - 1550

400

0,124

22,500

S-1810-P-

380 x 510 x 1400 - 1550

450

0,124

23,500

S-1811-P-

430 x 510 x 1400 - 1550

500

0,124

24,500

S-1813-P-

230 x 510 x 1550 - 1700

300

0,124

20,000

S-1814-P-

280 x 510 x 1550 - 1700

350

0,124

21,000

S-1815-P-

330 x 510 x 1550 - 1700

400

0,124

22,000

S-1816-P-

380 x 510 x 1550 - 1700

450

0,124

23,000

S-1817-P-

430 x 510 x 1550 - 1700

500

0,124

24,000

S-1819-P-

230 x 510 x 1700 - 1850

300

0,147

23,500

S-1820-P-

280 x 510 x 1700 - 1850

350

0,147

24,500

S-1821-P-

330 x 510 x 1700 - 1850

400

0,147

25,500

S-1822-P-

380 x 510 x 1700 - 1850

450

0,147

26,500

S-1823-P-

430 x 510 x 1700 - 1850

500

0,147

27,500

S-1825-P-

230 x 510 x 1850 - 2000

300

0,147

24,000

S-1826-P-

280 x 510 x 1850 - 2000

350

0,147

25,000

S-1827-P-

330 x 510 x 1850 - 2000

400

0,147

26,000

S-1828-P-

380 x 510 x 1850 - 2000

450

0,147

27,000

S-1829-P-

430 x 510 x 1850 - 2000

500

0,147

28,000

Premium Softclose Larder Baskets

Product Code Basket W x D x H (mm) C (mm) Box Volume (m3) Weight (kg)
S-1831-P- 230 x 445 x 83 300 10 0,097 18,500
S-1832-P- 280 x 445 x 83 350 10 0,117 20,000
S-1833-P- 330 x 445 x 83 400 10 0,138 21,500
S-1834-P- 380 x 445 x 83 450 10 0,158 23,500
S-1835-P- 430 x 445 x 83 500 10 0,178 25,500

Product Code

Basket

W x D x H (mm)

C (mm)

Box

Volume (m3)

Weight (kg)

S-1831-P-

230 x 445 x 83

300

0,097

18,500

S-1832-P-

280 x 445 x 83

350

0,117

20,000

S-1833-P-

330 x 445 x 83

400

0,138

21,500

S-1834-P-

380 x 445 x 83

450

0,158

23,500

S-1835-P-

430 x 445 x 83

500

0,178

25,500

Assembly Instructions

Download PDF
